Spark

Basics

  • application > job > state > task
  • cluser manager: scheduling spark applications. e.g. yarn/mesos
    • masater && worker
      • master: RM(ResourceManager in YARN)
      • worker: NM(NodeManager in YARN)
    • executor: Container in YARN
  • driver:
    • running in spark, including DAGScheduler && TaskScheduler
    • combine operations and form DAG(directed acyclic graph)
    • break down job into stages
    • similar to ApplicationMaster(AM) in YARN, responsible for applying resources and scheduling
    • DAGScheduler:
      • split job into stages
    • TaskScheduler:
      • similar to AM, responsible for applying resources and scheduling
  • YARN: ResourceManager(RM), NodeManager(NM), ApplicationMaster(AM), Container
  • YARN: only NM can start AM and Container
  • Standalone: master, worder, driver, executor
  • Standalone: only worker can start driver and executor spark-1 spark-4 spark-3 spark-2

Operating Mode

  • local/local-cluster/standalone/yarn/mesos

local

  • driver + executor, running in one process

  • pyspark use local[*] by default

    • local: one executor
    • local[K]: K executors, K threads
    • local[*]: the number of cpu executors

  • change mode with pyspark --master

  • with jps to check procsses

bin/pyspark --master local
# or
bin/spark-submit examples/src/main/python/pi.py 10

local-cluster

  • driver + master + worker, running in one process
  • each worker has multiple executors, each executor start one new process
  • pyspark --master local-cluster[x, y, z]
    • x: the number of executors
    • y, z: each executor has y cores(actually threads) and z memory size(MB)
bin/pyspark --master "local-cluster[2, 2, 1024]" # commont out pyspark setup in .zshrc
# or
bin/spark-submit --master "local-cluster[2, 2, 1024]" examples/src/main/python/pi.py 10

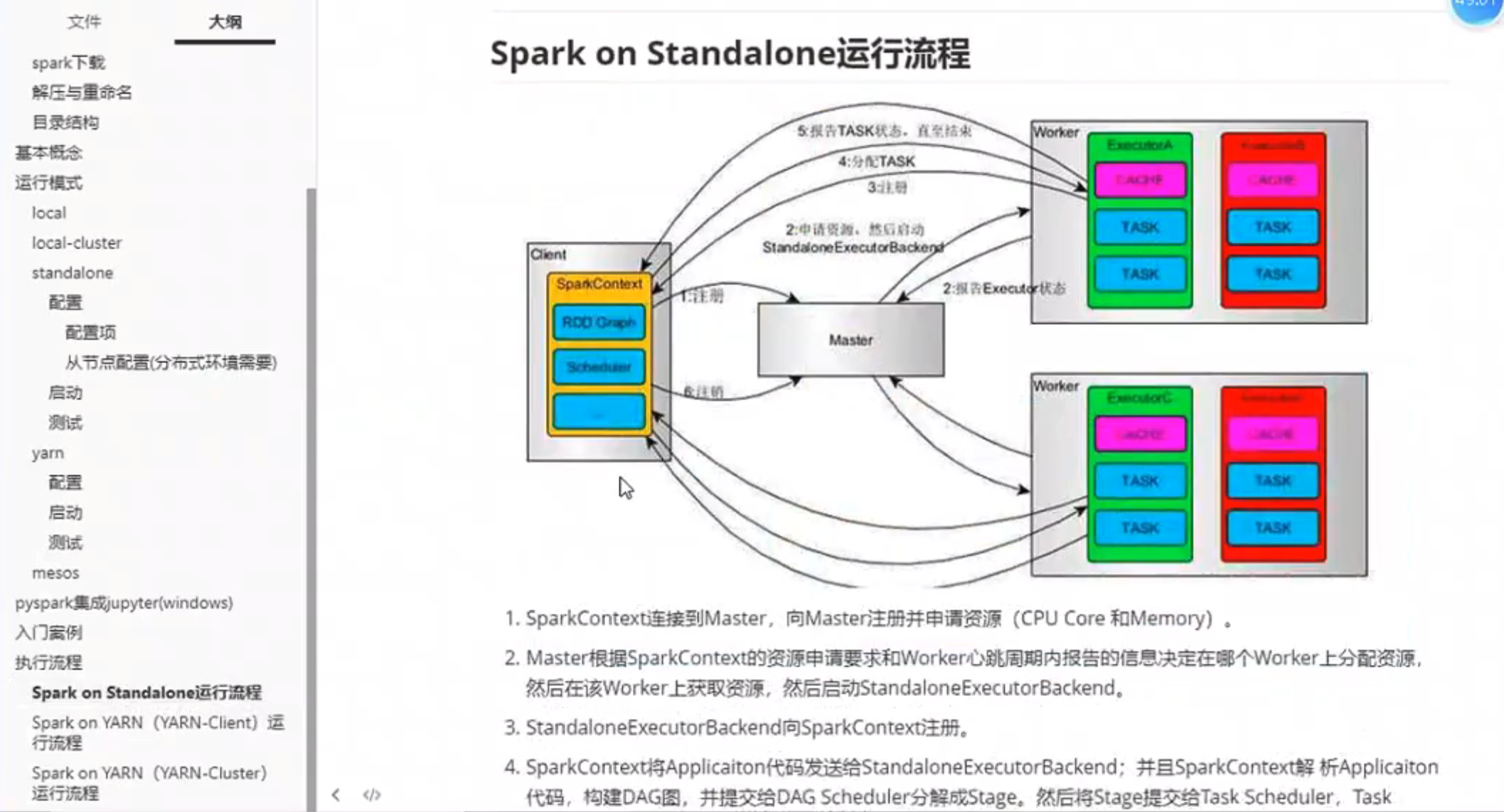

standalone

  • written by spark, similar to RM of YARN
  • driver/master/worker/executor all have their own process
  • Setup:
    • spark-env.sh.template
    • spark-default.conf.template
    • Note: SparkSubmitArguments reads in order:
      • [pyspark-options] or [spark-submit-options], [conf/spark-default.conf], [conf/spark-env.sh]
  • Setup workers:
    1. modify conf/slaves file
    2. sync the setup of work1 and work2
    scp -r /opt/module/spark-3.5.0-bin-hadoop3/ worker1:/opt/module/spark-3.5.0-bin-hadoop3
scp -r /opt/module/spark-3.5.0-bin-hadoop3/ worker2:/opt/module/spark-3.5.0-bin-hadoop3
  • Start:
    1. Start spark
    sbin/start-all.sh
    1. Start process
    [start-all.sh]
-> load [spark-config.sh]
-> run [start-master.sh] and [start-slaves.sh]
-> load [spark-config.sh] and [spark-env.sh]
-> run [spark-daemon.sh]
-> run [spark-class.sh] or ([spark-submit.sh] -> [spark-class.sh])
  • Test:
    • On each machine, use jps to check process of master and slaves
    • Entry master’s WEBUI: 8080
    • run pyspark
      bin/pyspark --master spark://localhost:7077
    • run spark-submit

      must assign --master for standalone, otherwise it will be local

      bin/spark-submit --master spark://localhost:7077 examples/src/main/python/pi.py 10
  • Kill:
    • jps
    • kill 00000

yarn and mesos(similar to yarn)

start yarn and hdfs in hadoop, then spark-submit with yarn, we don’t need to start spark

  • yarn-client and yarn-cluster
  • Setup:
    • spark-env.sh.template rename to spark-env.sh
    HADOOP_CONF_DIR=/...../hadoop-3.3.6/etc/hadoop
or
YARN_CONF_DIR=/home/yixianwang/hadoop/etc/hadoop
  • Start:
    • in hadoop folder, run the following
    sbin/hadoop-daemon.sh start namenode
sbin/hadoop-daemon.sh start datenode
sbin/yarn-daemon.sh start resourcemanager
sbin/yarn-daemon.sh start nodemanager
# or directly
sbin/start-all.sh
  • Test:

    netstat -an|grep LISTEN

    1. On each machine, use jps to check process of RM and NM
    2. Entry master’s WEBUI: 8088

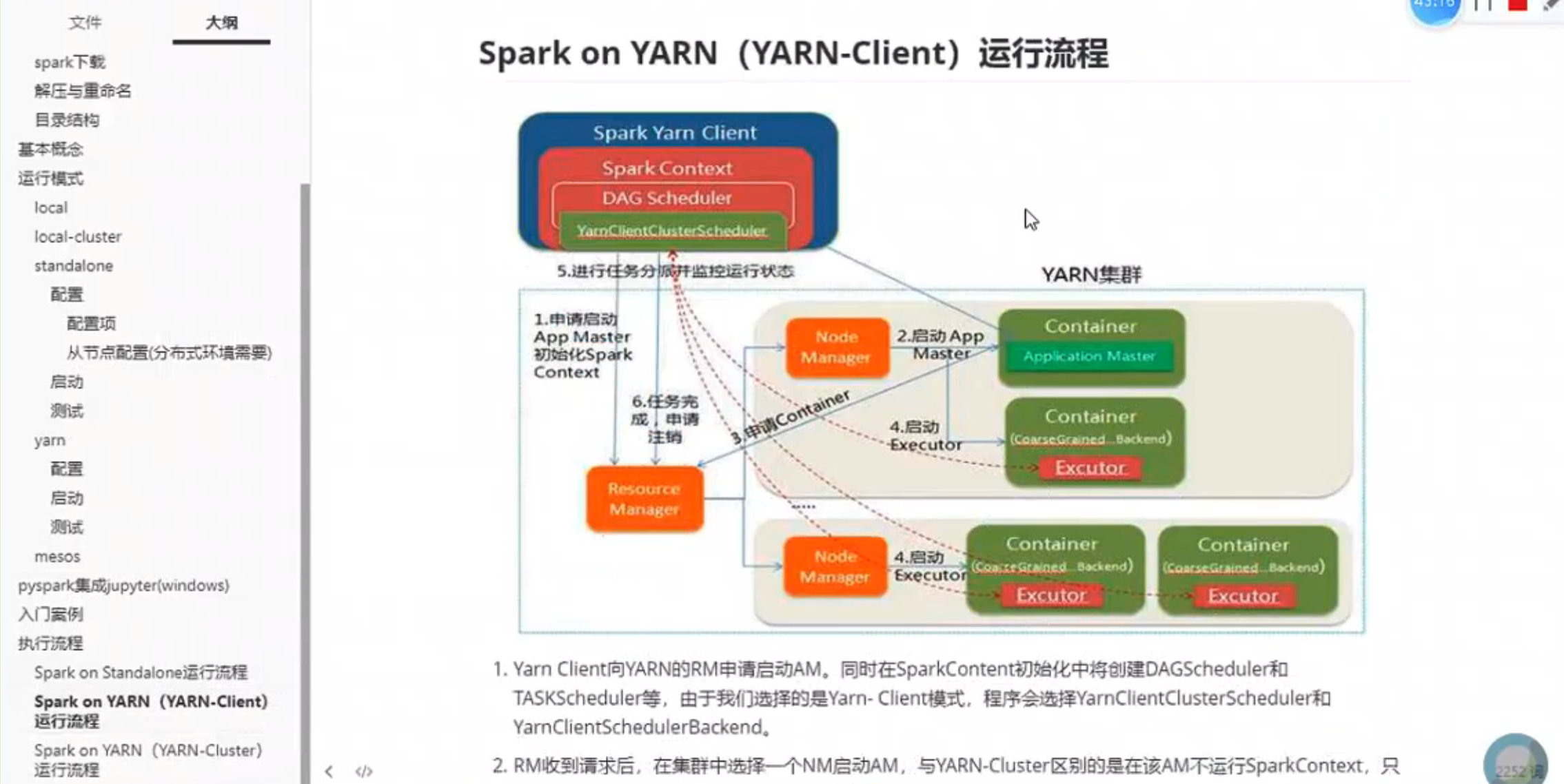

    3. running: yarn-client
    bin/spark-submit --master yarn examples/src/main/python/pi.py 10

    Note: --deploy-mode default is client, start driver from client, we can browse logs from client

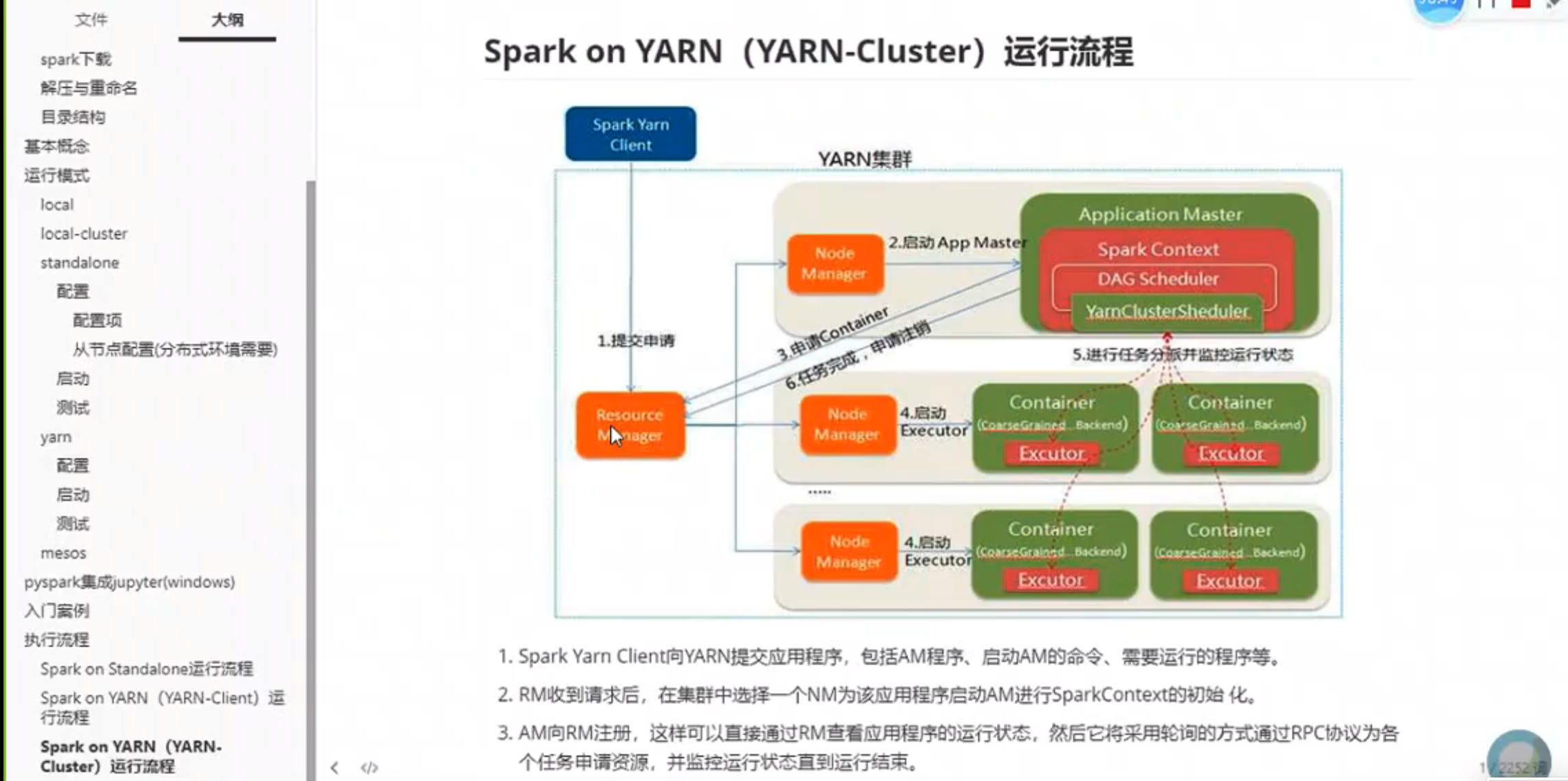

    1. running: yarn-cluster
    bin/spark-submit --master yarn --deploy-mode cluster examples/src/main/python/pi.py 10

    Note: if --deploy-mode is cluster, start driver from master of cluster, we have to use history server to browse logs

SparkSession && sparkContext

  • spark sql, start with SparkSession
  • spark core, start with sparkContext

For Test in Local: open Jupyter notbook with pyspark built-in spark and sc

# .zshrc
export PYSPARK_DRIVER_PYTHON=jupyter-lab
export PYSPARK_DRIVER_PYTHON_OPTS=/opt/module/spark-3.5.0-bin-hadoop3/tutu

Examples

# after setting up, pyspark has built-in spark and sc, and can open jupyter-lab
# for local test with jupyter
pyspark
# file and counts are RDDs
file = sc.textFile("/opt/module/spark-3.5.0-bin-hadoop3/data/core/data/wordcount.txt")
counts = file.flatMap(lambda line : line.split(' '))\
             .map(lambda word : (word, 1))\
             .reduceByKey(lambda a, b : a + b)
counts.collect()

# collect before saving
file.collect()
file.saveAsTextFile("/opt/module/spark-3.5.0-bin-hadoop3/data/core/data/result")

read from HDFS

  • Start HDFS:
sbin/hadoop-daemon.sh start namenode
sbin/hadoop-daemon.sh start datanode
  • Upload file
# create 1 -level folder
bin/hdfs dfs -mkdir /spark
# create 2 -level folder
bin/hdfs dfs -mkdir -p /spark/history
bin/hdfs dfs -rm -r /folder_need_to_remove

history server setup

  1. Setup

    1. setup spark-defaults.conf
    # spark-defaults.conf
spark.eventLog.enabled   true
spark.eventLog.compress  true
spark.eventLog.dir       hdfs://localhost:9000/spark/history
    1. create history foler in hdfs
    bin/hdfs dfs -mkdir -p /spark/history
    1. setup spark-env.sh
    SPARK_HISTORY_OPTS="-Dspark.history.ui.port=18080 -Dspark.history.retainedApplications=3 -Dspark.history.fs.logDirectory=hdfs://localhost:9000/spark/history -Dspark.history.fs.cleaner.interval=1d -Dspark.history.fs.cleaner.maxAge=2d"

  2. Run

    1. start hdfs
    2. mkdir hdfs folder
    3. start historyserver start-history-server.sh

tail -10f filename realtime checking
