AWS

Global Services

  • Identity and Access Management (IAM)
  • Route 53 (DNS service)
  • CloudFront (Content Delivery Network)
  • WAF (Web Application Firewall)

Region-scoped

  • Amazon EC2 (Infrastructure as a Service)
    • Renting virtual machines (EC2)
    • Storing data on virtual drives (EBS)
    • Elastic File System (EFS)
    • Distributing load across machines (ELB)
    • Scaling the services using an auto-scaling group (ASG)
  • Elastic Beanstalk (Platform as a Service)
  • Lambda (Function as a Service)
  • Rekognition (Software as a Service)

Concepts

  • RDS Multi-AZ = Synchronous = High Availability
  • Read Replica = Asynchronous = Disaster Recovery (DR)

IAM

which aws
aws --version

aws configure

aws iam list-users

Section 7: EC2 Instance Storage

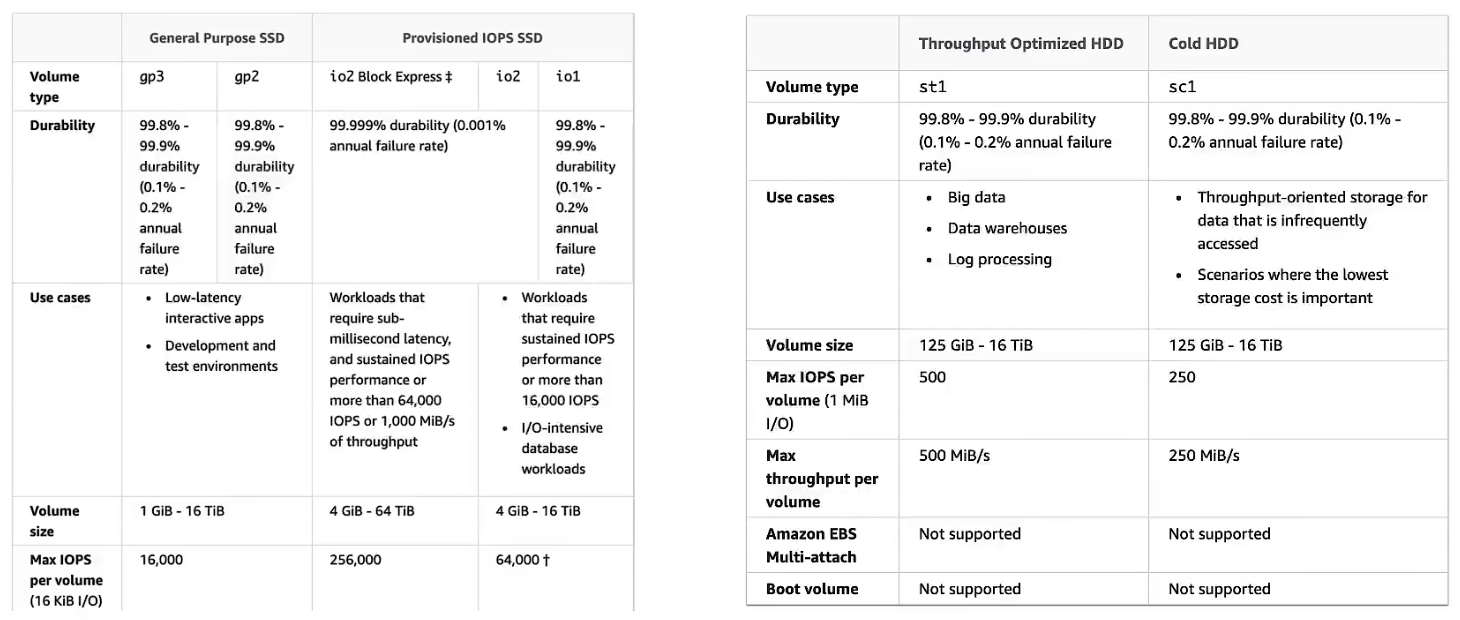

EBS


General Purpose SSD, gp2, gp3

  • gp3: IOPS and throughput are not linked.
  • gp2: IOPS and throughput are linked.

Provisioned IOPS (PIOPS) SSD, io1/io2

  • Use Case:
    • Critical business applications with sustained IOPS performance.
    • Or applications that need more than 16000 IOPS
    • Great for database workloads(sensitive to storage perf and consistency)
  • PIOPS and storage size are not linked just like gp3

Hard Disk Drives(HDD), st1, sc1

  • cannot be boot volume

  • Throughput Optimized HDD(st1)

    • Big Data, Data Warehouses, Log Processing

  • Cold HDD(sc1)

    • For data that is infrequently accessed

EBS Multi-Attach - io1/io2 family

  • attach the same EBS volume to multiple EC2 instances in the same AZ
  • Up to 16 EC2 instances at a time.

EBS Encryption

  • create snapshot
    1. copy snapshot && encrypt snapshot
    2. create volume from snapshot && encrypt volume

EFS

  • EFS works with EC2 instances in multi-AZ

Section 8: High Availability and Scalability: ELB & ASG

Section 9: AWS Fundamentals: RDS + Aurora + ElastiCache

Section 10: Route 53

  • Domain Registrar: Amazon Route 53, GoDaddy, …
  • DNS Records: A, AAAA, CNAME, NS, …
  • Zone File: contains DNS Records
  • Name Server: resolves DNS queries (Authoritative or Non-Authoritative)
  • Top Level Domain (TLD): .com, .us, .in, .gov, .org, …
  • Second Level Domain (SLD): amazon.com, google.com, …

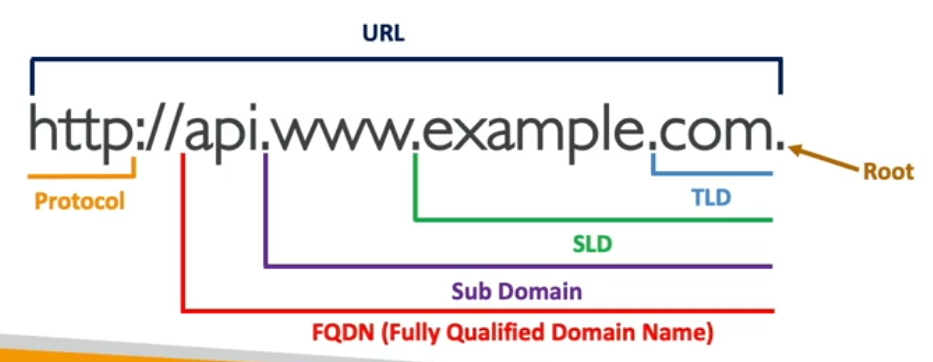

URL

  • DNS SOA(Start of Authority) record

How DNS works

Section 11: Classic Solutions Architecture Discussions

Section 12: Amazon S3 Introduction

Section 13: Advanced Amazon S3

Section 14: Amazon S3 Security

Section 15: CloudFront & AWS Global Accelerator

Section 16: AWS Storage Extras

Section 17: Decoupling applications: SQS, SNS, Kinesis, Active MQ

Section 18: Containers on AWS: ECS, Fargate, ECR & EKS

Section 19: Serverless Overviews from a Solution Architect Perspective

Section 20: Serverless Solution Architecture Discussions

Section 21: Databases in AWS

Section 22: Data & Analytics

Section 23: Machine Learning

  • Rekognition: face detection, labeling, celebrity recognition
  • Transcribe: audio to text
  • Polly: text to audio
  • Translate: translations
  • Lex: build conversational bots - chatbots
  • Connect: cloud contact center
  • Comprehend: NLP
  • SageMaker: ML for every developer and data scientist
  • Forecast: build high accurate forecasts
  • Kendra: ML-powered search engine
  • Personalize: real-time personalized recommendations
  • Textract: extract text from file

Section 24: AWS Monitor & Audit: CloudWatch, CloudTrail & Config

Section 25: Identity and Access Management(IAM) - Advanced

Section 26: AWS Security & Encryption: KMS, SSM Parameter Store, Shield, WAF

Section 27: Networking - VPC

  • Gateway VPC endpoints: Amazon S3 and DynamoDB, with route we don’t need public IP addresses
  • Interface VPC endpoints: are used by all the other services that are becoming available inside our VPC.
    • PrivateLink: we can use this to share our services with thousands of other VPCs.

Section 28: Disaster Recovery & Migrations

Section 29: More Solution Architecures

Section 30: Other Services
